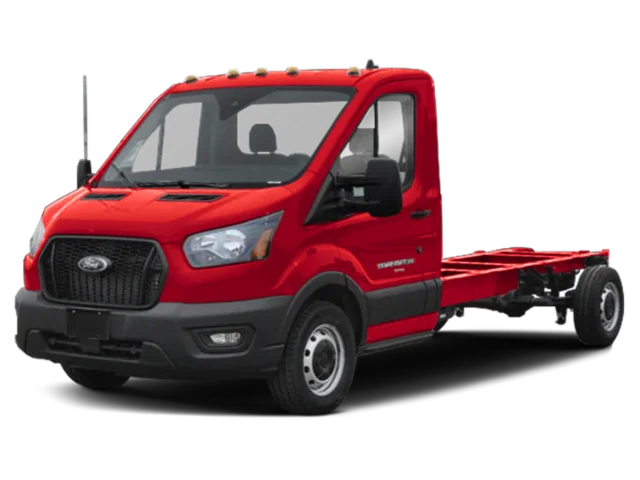

New 2025 Ford TRANSIT CUTAWAY T-350 AWD SRW 138 WB 950
- VIN: 1FDBW7P80SKA05195
- Stock: CF5232
(1) Photos
/
Details Form Opened
Details
New 2025 Ford TRANSIT CUTAWAY T-350 AWD SRW 138 WB 950
VIN: 1FDBW7P80SKA05195STOCK: CF5232Basic Info
-
Exterior:Oxford White
-
Drivetrain:AWD
-
Interior:CK- DK PALAZZO GRAY CLOTH
-
Transmission:10-Speed Automatic Overdrive Transmission with SelectShift®
-
Engine:3.5L PFDi V6 Engine
Key Features
-
AWD
-
Bluetooth
-
WiFi Hotspot
Vehicle Details
Exterior
- Tires: 235/65R16C 121/119 R AS BSW
- Black Front Bumper
- Black Bodyside Cladding and Black Wheel Well Trim
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Light Tinted Glass
- Rain Detecting Variable Intermittent Wipers
- Fully Galvanized Steel Panels
- Black Grille
- Cab Clearance Lights
- LED Brakelights
Interior
- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
- Manual Tilt/Telescoping Steering Column
- Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer and Trip Odometer
- FordPass Connect 4G Mobile Hotspot Internet Access
- Front Cupholder
- Locking Glove Box
- Driver Foot Rest
- Interior Trim -inc: Metal-Look Instrument Panel Insert
- Front Cloth Headliner
- Urethane Gear Shifter Material
- Partial Floor Console w/Storage and 2 12V DC Power Outlets
- Front Map Lights
- Fade-To-Off Interior Lighting
- Front Only Vinyl/Rubber Floor Covering
- Modified Vehicle Wiring System -inc: modified vehicle connections for customized wiring harness provisions
- Driver Alert
- Instrument Panel Bin, Driver And Passenger Door Bins
- Power 1st Row Windows w/Driver 1-Touch Down
- Driver Information Center
- Analog Appearance
- Manual Adjustable Front Head Restraints
- Driver Armrest
- Immobilizer
- 2 12V DC Power Outlets
Entertainment
- 4 Speakers
- Fixed Antenna
- Bluetooth Wireless Phone Connectivity
- 1 LCD Monitor In The Front
Mechanical
- Engine: 3.5L PFDi V6 (FFV) -inc: port injection and E-85 flex-fuel capable capability
- GVWR: 9,500 lb
- 50-State Emissions System
- Transmission w/Oil Cooler
- Automatic Full-Time All-Wheel
- 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
- 250 Amp Alternator
- Gas-Pressurized Front Shock Absorbers and HD Gas-Pressurized Rear Shock Absorbers
- Front Anti-Roll Bar
- Electric Power-Assist Steering
- 25.1 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Permanent Locking Hubs
- Strut Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
Safety
- Ford Co-Pilot360 w/Side Wind Stabilization Electronic Stability Control (ESC) And Roll Stability Control (RSC)
- Side Impact Beams
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
Tech Specs
- Vehicle Name: Ford Transit Cutaway
- Body Style: Chassis
- Body Code: H
- Drivetrain: All Wheel Drive
- Passenger Capacity: 2
- Base Curb Weight: 4430
- Gross Axle Wt Rating - Front: 4630
- Gross Axle Wt Rating - Rear: 5750
- Curb Weight - Front: 3166
- Curb Weight - Rear: 1264
- Gross Vehicle Weight Rating Cap: 9500
- Fuel Economy Est-Combined: - TBD -
- EPA Fuel Economy Est - City: - TBD -
- EPA Fuel Economy Est - Hwy: - TBD -
- Gross Combined Wt Rating: 12000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 6400
- Wt Distributing Hitch - Max Tongue Wt.: 640
- Maximum Trailering Capacity: 6400
- Engine Order Code: 998
- Engine Type: Regular Unleaded V-6
- Displacement: 3.5 L/213
- Fuel System: Port/Direct Injection
- SAE Net Horsepower @ RPM: 275 @ 6250
- SAE Net Torque @ RPM: 260 @ 4000
- Trans Order Code: 44U
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.69
- Second Gear Ratio (:1): 2.98
- Third Gear Ratio (:1): 2.15
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.27
- Reverse Ratio (:1): 4.87
- Trans PTO Access: No
- Transfer Case Model: None
- Transfer Case Power Take Off: No
- Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
- Maximum Alternator Capacity (amps): 250
- Engine Oil Cooler: None
- Suspension Type - Front: Strut
- Suspension Type - Rear: Leaf
- Axle Type - Front: Independent
- Axle Type - Rear: Rigid Axle
- Axle Ratio (:1) - Front: 4.10
- Axle Ratio (:1) - Rear: 4.10
- Front Tire Order Code:
- Rear Tire Order Code:
- Spare Tire Order Code:
- Front Tire Size: LT235/65SR16
- Rear Tire Size: LT235/65SR16
- Spare Tire Size:
- Revolutions/Mile @ 45 mph - Front: 720
- Revolutions/Mile @ 45 mph - Rear: 720
- Front Wheel Size: 16 X 6.5
- Rear Wheel Size: 16 X 6.5
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Rack-Pinion
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 12.1
- Rear Brake Rotor Diam x Thickness: 12.1
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 25.1
- Front Head Room: 44.9
- Front Leg Room: 41.3
- Front Shoulder Room: 67.9
- Front Hip Room: 60.7
- Wheelbase: 138
- Length, Overall: 223.3
- Width, Max w/o mirrors: 80.8
- Height, Overall: 87.3
- Overhang, Front: 40.3
- Overhang, Rear w/o bumper: 45.1
- Cab to Axle: 82.6
- Cab to End of Frame: 127.7
- Ground Clearance, Front: 5.5
- Ground Clearance, Rear: 5.5
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Model Group: Transit
- Vehicle Segment: Chassis
- Vehicle Type: Chassis
- Body Cab Style: Chassis
- Engine Displacement Units: 3.5
- Engine Camshaft: DOHC
- Engine Block Type: aluminum
- Engine Cylinder Count: 6
- Engine Valve Count: 4
- Country of Origin: United States Ford Incomplete Vehicle
