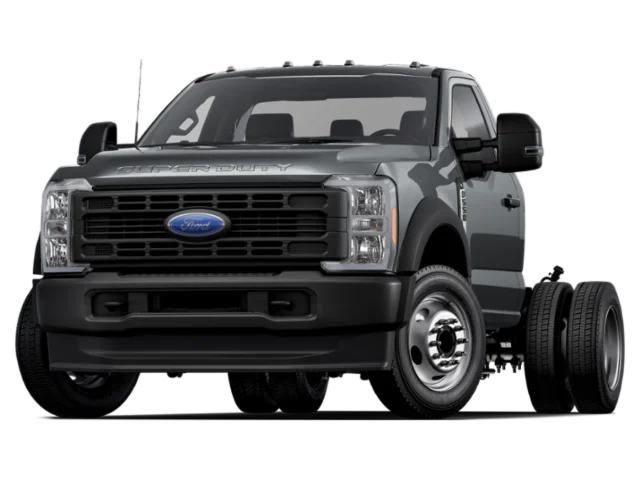

New 2027 Ford SUPER DUTY F-550 DRW XL 4WD REG CAB 169 WB 84
- VIN: 1FDFF5HT6VDA00505
- Stock: CF7203
(1) Photos
/
finance
$1,560
7.3% | 60 months | $7,887 down
Explore Payment Options
Details Form Opened
Details
New 2027 Ford SUPER DUTY F-550 DRW XL 4WD REG CAB 169 WB 84
VIN: 1FDFF5HT6VDA00505STOCK: CF7203Basic Info
-
Exterior:Oxford White
-
Drivetrain:
-
Interior:AS- MED DARK SLATE VINYL
-
Transmission:10-Speed Automatic
-
Engine:99T
Key Features
-
Fog Lights
-
Remote Start
-
Side-Impact Air Bags
-
Tow Package
Vehicle Details
Exterior
- Black Fender Flares
- Black Side Windows Trim and Black Front Windshield Trim
- Black Door Handles
- Manual Extendable Trailer Style Mirrors
- Fixed Rear Window
- Variable Intermittent Wipers
- Aluminum Panels
- Front Splash Guards
- Autolamp Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps w/Delay-Off
- Cab Clearance Lights
- Perimeter/Approach Lights
Interior
- 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
- 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
- Manual Tilt/Telescoping Steering Column
- Front Cupholder
- Compass
- Cruise Control w/Steering Wheel Controls
- Manual Air Conditioning
- Locking Glove Box
- Full Cloth Headliner
- Urethane Gear Shifter Material
- Day-Night Rearview Mirror
- Front Map Lights
- Ford Security Package Tracker System
- Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
- Delayed Accessory Power
- Driver Information Center
- Outside Temp Gauge
- Digital/Analog Appearance
- Manual Adjustable Front Head Restraints
- Front Center Armrest w/Storage
- Securilock Anti-Theft Ignition (pats) Immobilizer
- Air Filtration
Entertainment
- 4 Speakers
- Fixed Antenna
- 2 LCD Monitors In The Front
Mechanical
- 4.88 Axle Ratio
- GVWR: 18,000 lbs Payload Package
- 50-State Emissions System
- Transmission w/Driver Selectable Mode and Oil Cooler
- Electronic Transfer Case
- Part-Time Four-Wheel Drive
- 68-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
- Trailer Wiring Harness
- HD Gas-Pressurized Shock Absorbers
- Front And Rear Anti-Roll Bars
- Firm Suspension
- Hydraulic Power-Assist Steering
- 40 Gal. Fuel Tank
- Single Stainless Steel Exhaust
- Dual Rear Wheels
- Auto Locking Hubs
- Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
- Upfitter Switches
Safety
- Driveline Traction Control
- Side Impact Beams
- Dual Stage Driver And Passenger Seat-Mounted Side Airbags
- Pre-Collision Assist with Automatic Emergency Braking (AEB)
- Collision Mitigation-Front
- Tire Specific Low Tire Pressure Warning
- Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
- Safety Canopy System Curtain 1st Row Airbags
- Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
Tech Specs
- Vehicle Name: Ford Super Duty F-550 DRW
- Body Style: SD Regular Cab
- Body Code: H
- Drivetrain: Four Wheel Drive
- Passenger Capacity: 3
- Base Curb Weight: 7582
- Gross Axle Wt Rating - Front: 4800
- Gross Axle Wt Rating - Rear: 13660
- Curb Weight - Front: 3880
- Curb Weight - Rear: 2978
- Gross Vehicle Weight Rating Cap: 18000
- Gross Combined Wt Rating: 30000
- Dead Weight Hitch - Max Trailer Wt.: 5000
- Dead Weight Hitch - Max Tongue Wt.: 500
- Wt Distributing Hitch - Max Trailer Wt.: 18500
- Wt Distributing Hitch - Max Tongue Wt.: 1850
- Fifth Wheel Hitch - Max Trailer Wt.: 21700
- Fifth Wheel Hitch - Max Tongue Wt.: 5425
- Maximum Trailering Capacity: 18500
- Engine Order Code: 99T
- Engine Type: Intercooled Turbo Diesel V-8
- Displacement: 6.7 L/406
- Fuel System: Direct Injection
- SAE Net Horsepower @ RPM: 330 @ 2200
- SAE Net Torque @ RPM: 950 @ 1800
- Trans Order Code: 44G
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Reverse Ratio (:1): 4.70
- Trans Power Take Off: Yes
- Trans PTO Access: Yes
- Transfer Case Model: Electronic
- Transfer Case Power Take Off: Yes
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 250 & 0
- Engine Oil Cooler: No
- Suspension Type - Front: Other
- Suspension Type - Rear: Leaf
- Spring Capacity - Front: 4800
- Spring Capacity - Rear: 15000
- Axle Type - Front: Non-Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: 7000
- Axle Capacity - Rear: 13660
- Axle Ratio (:1) - Front: 4.88
- Axle Ratio (:1) - Rear: 4.88
- Front Tire Order Code: TGJ
- Rear Tire Order Code: TGJ
- Spare Tire Order Code:
- Front Tire Size: LT225/70SR19.5
- Rear Tire Size: LT225/70SR19.5
- Spare Tire Size:
- Front Tire Capacity: 7500
- Rear Tire Capacity: 15000
- Revolutions/Mile @ 45 mph - Front: 647
- Revolutions/Mile @ 45 mph - Rear: 647
- Front Wheel Size: 19.5 X 6
- Rear Wheel Size: 19.5 X 6
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter - Curb to Curb: 42.5
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15.4
- Rear Brake Rotor Diam x Thickness: 15.8
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Aux Fuel Tank Capacity, Approx:
- Front Head Room: 40.8
- Front Leg Room: 43.9
- Front Shoulder Room: 66.7
- Front Hip Room: 62.5
- Wheelbase: 145
- Length, Overall: 230.7
- Width, Max w/o mirrors: 80
- Height, Overall: 82.6
- Overhang, Front: 38.3
- Overhang, Rear w/o bumper: 47.2
- Cab to Axle: 60
- Cab to End of Frame: 107.2
- Frame Width, Rear: 34.2
- Ground Clearance, Front: 8.5
- Ground Clearance, Rear: 8.5
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Country of Origin: United States Ford Incomplete Vehicle
